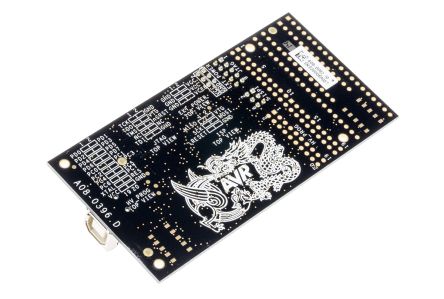

Image is for your reference only,please check specifications for details

ATAVRDRAGON - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC16685396
Category:
FPGA Chip, PAL, CPLD IC
Package:
KIT
Datasheet:
Datasheet 3D Model
Description:
Development Tool for 8Bit and 32Bit AVR Devices w/ On-Chip Debug Capability
Stock Locations:
Availability:
9,177 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 125.03

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ATAVRDRAGON is an development tool used to debug AVR microcontrollers, AVR Dragon is fully supported by AVR Studio. The AVR Dragon sets a new standard for low cost development tools for 8bit and 32bit AVR devices with on chip debug (OCD) capability. It can perform a symbolic debug on all devices with OCD with SPI, JTAG, PDI, high voltage serial programming, parallel programming, and aWire modes, and supports debugging using SPI, JTAG, PDI interfaces. AVR Dragon supports all programming modes for the Atmel AVR device family. It also include full emulation support for devices with 32kB or less flash memory. A development area lets designers build their own circuitry or add sockets for the desired device footprint. The debugger also supports NanoTrace, depending on the OCD module on the AVR device, using the target device"s memory. AVR Dragon is powered by the USB cable, and can also source an external target with up to 300mA (from the VCC connector) when programming or debugging.

Show

ATAVRDRAGON Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	KIT
RAM Memory Size	128 KB
Core Architecture	AVR
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
