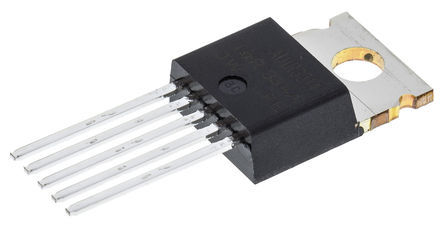

Image is for your reference only,please check specifications for details

AUIPS7081 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC82360161
Category:
Power Distribution
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 2.3A 0.06Ω Automotive 5Pin(5+Tab) TO-220 Tube
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AUIPS7081 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Number of Outputs	1 Output
Output Current	5 A
Supply Current	2.5 mA
Number of Positions	5 Position
Power Dissipation	2.5 W
Input Voltage (Max)	5.5 V
Output Current (Max)	2 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Input Voltage	5.5 V
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	16.51 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
