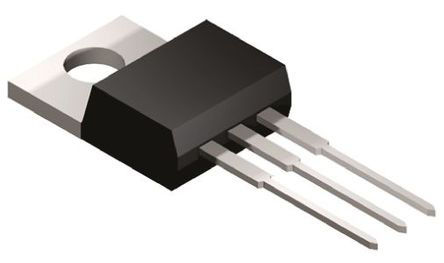

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AUIRF3205 is a HEXFET® single N-channel Power MOSFET utilizes the latest processing techniques to achieve low ON-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized design, provides an extremely efficient and reliable operation.
- Stripe planar design
- Advanced planar technology
- Low ON-resistance
- Dynamic dV/dt rating
- Fully avalanche rating
- Repetitive avalanche allowed up to Tjmax
AUIRF3205 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.008 Ω |
| Polarity | N-Channel |
| Power Dissipation | 200 W |
| Threshold Voltage | 2 V |
| Drain to Source Voltage (Vds) | 55 V |
| Continuous Drain Current (Ids) | 110A |
| Rise Time | 101 ns |
| Input Capacitance (Ciss) | 3247pF @25V(Vds) |
| Fall Time | 65 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200W (Tc) |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 4.83 mm |
| Size-Height | 9.02 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance Edition | 2015/12/17 |
