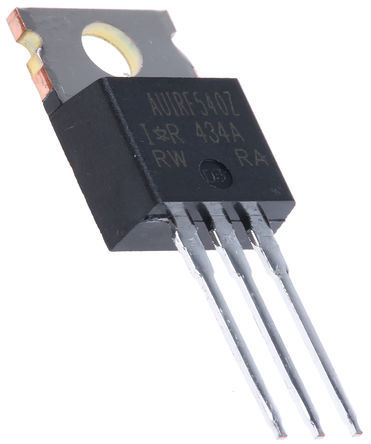

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AUIRF540Z is a 100V single N-channel HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. It features combine to make this design an extremely efficient and reliable device for wide variety of applications.
- Advanced process technology
- Ultra low on-resistance
- Repetitive avalanche allowed up to Tjmax
- Automotive qualified
- 175°C Operating temperature
- ESD sensitive device, take proper precaution while handling the device.
AUIRF540Z Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Rating | 92 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.021 Ω |
| Polarity | N-Channel |
| Power Dissipation | 92 W |
| Threshold Voltage | 2 V |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 36A |
| Rise Time | 51 ns |
| Input Capacitance (Ciss) | 1770pF @25V(Vds) |
| Fall Time | 39 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 92W (Tc) |
| Show | |
| Size-Length | 10.66 mm |
| Size-Width | 4.82 mm |
| Size-Height | 16.51 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status |
