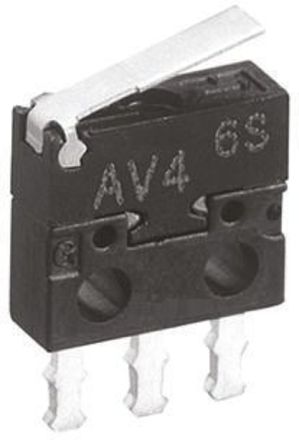

Image is for your reference only,please check specifications for details
- AV4024 - Panasonic Semiconductor
-
Manufacturer:Panasonic Semiconductor
-
ManyChip's Part#:MC17148493
-
Category:Snap Action / Limit Switches
-
Datasheet:Datasheet 3D Model
-
Description:Переключатель с ограничением движения, SPDT, мгновенный, 0,5 А, 30 В DC, 2,8 мм, паяный вывод, шарнирный рычаг, сквозное отверстие — прямой тип, соответствует требованиям ROHS
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 29/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- AV4024 производится компанией Panasonic Electric и относится к категории переключателей с ограничением движения. AV4024 представлен как ПЕРЕКЛЮЧАТЕЛЬ СПУТНИЙ ДВИЖЕНИЯ SPDT 500 МА. Perfect Parts является поставщиком переключателей и других электромеханических компонентов.
AV4024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (DC) | 30 V |
| Actuator Type | Straight Lever |
| Current Rating | 500mA (DC) |
| Contacts Type | SPDT |
| Contact Current Rating | 500mA @30VDC |
| Current Rating (Max) | 0.5A @30VDC |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (DC Max) | 30 V |
| Show | |
| Size-Length | 7.5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 13.6 mm |
| Contact Material | Stainless Steel |
| Operating Temperature | -25℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
