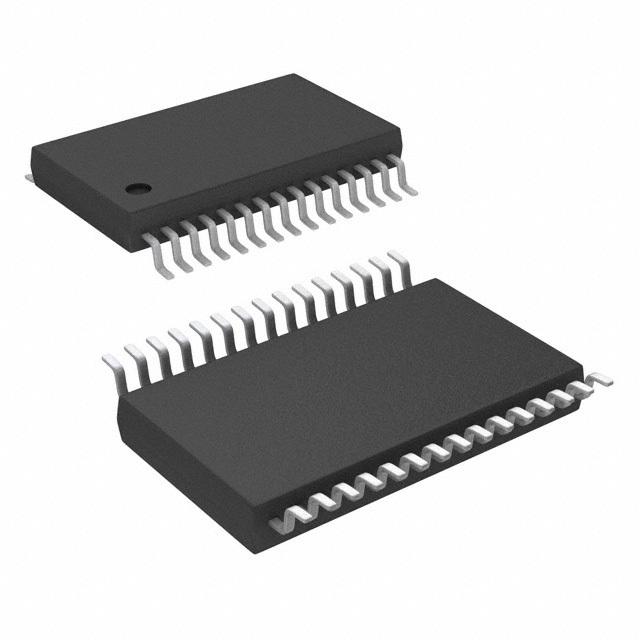

TPS5124DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC52628040
Category:
Voltage Regulator
Package:
TSSOP-30
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) TPS5124 Dual Channel Synchronous Step-Down PWM Controller DC-DC Cntrlr Dual-OUT Step Down 500kHz 30Pin TSSOP Tube
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.23

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS5124 is dual independent high efficiency synchronous step-down controller. It supports a low-voltage/high-current power supply applications that use either a 5-V or 12-V bus voltage. Since both controllers of the TPS5124 operate 180 degree out-of-phase, the input current ripple is minimized resulting in a smaller input capacitance and reduced power supply cost.
The current protection circuit detects the drain-to-source voltage drop across the high-side and low-side power MOSFET while it is conducting. Also, the current protection circuit has a temperature coefficient to compensate for the RDS(on) variation of the MOSFET. This resistor-less current protection and built-in boost diode simplify the system design and reduces the external parts count. Other features such as undervoltage lockout, overvoltage, undervoltage, and programmable short-circuit protection promote system reliability.

Show

TPS5124DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	30 Pin
Case/Package	TSSOP-30
Frequency	300 kHz
Supply Voltage (DC)	4.50V (min)
Number of Outputs	2 Output
Input Voltage (DC)	21.0 V
Output Voltage	0.9V ~ 12V
Output Current	20 A
Input Current	1.10 mA
Power Dissipation	874 mW
Quiescent Current	1.10 mA
Number of Regulated Outputs	2 Output
Switching Frequency	300 kHz
Thermal Shutdown	No
Topology	Buck
Duty Cycle	80 %
Input Voltage (Max)	15 V
Input Voltage (Min)	4.5 V
Output Current (Max)	20 A
Maximum Duty Cycle	0.8
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	874 mW
Supply Voltage	4.5V ~ 15V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 15V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
