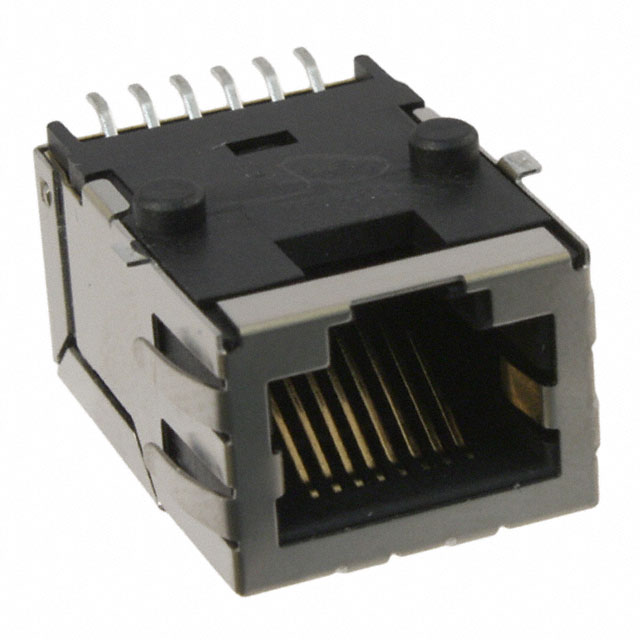

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This rj-45 JV011I21NL telephone and telecom connector from Pulse is the perfect connector for high-power applications. This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. Its pitch is 2.03 mm. It has a female type gender. The component will be shipped in tray format. It uses the solder termination method. JV011I21NL is housed in thermoplastic. This part has an operating temperature of 0 to 70 °C. This product is 19.33 mm long, 12.88 mm tall and 23.75 mm deep.
JV011I21NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Contacts | 8 Contact |
| Contact Plating | Gold, Gold over Nickel |
| Number of Rows | 1 Row |
| Number of Mating Cycles | 750 Cycle |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Size-Length | 19.33 mm |
| Size-Width | 23.75 mm |
| Size-Height | 12.88 mm |
| Contact Material | Phosphor Bronze |
| Weight | 6.6 g |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
