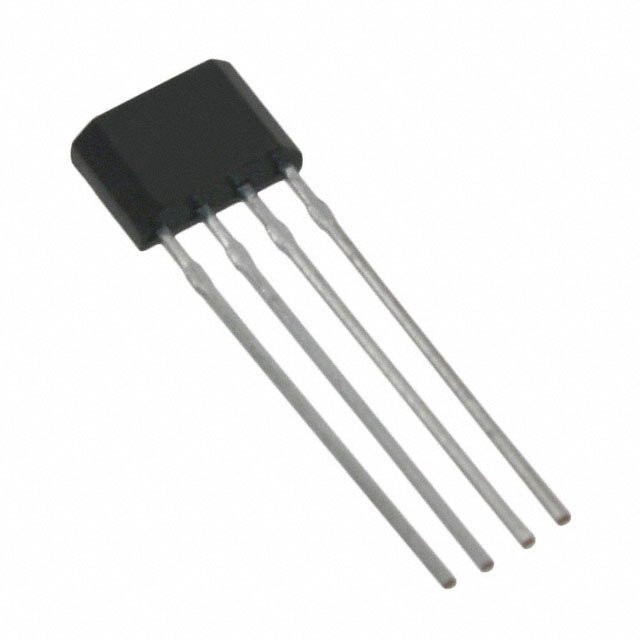

Image is for your reference only,please check specifications for details
- SS42R - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC30855096
-
Category:Hall Effect Sensor
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:Hall Effect Sensor 10mA Latch 1.8V/2.5V/3.3V/5V/9V/12V/15V/18V/24V 4Pin SIP Bag
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- If your project requires proximity switching, positioning, speed detection, or current sensing applications then use this SS42R Hall effect sensor from Honeywell. This part can handle a current up to 10 mA. This device has a minimum operating supply voltage of -28 V and a maximum of 28 V. This part has a temperature range of -40 °C to 125 °C.
SS42R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 4.50V (min) |
| Output Current | 4.7 mA |
| Supply Current | 11.0 mA |
| Number of Positions | 4 Position |
| Output Current (Max) | 10 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 4.5V ~ 16V |
| Supply Voltage (Max) | 16 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Height | 3.56 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8542390000 |
