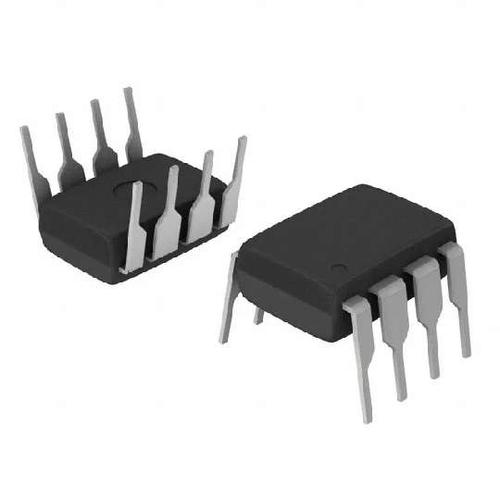

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVS1ACP08 is a 8-pin Automatic Voltage Controller TRIAC for low consumption and high security triggering. The TRIAC is specially designed for an optimization between sensitivity and dynamic parameters of the TRIAC gate highly reduces the losses of supply resistor and allows excellent immunity against disturbances.
High efficiency and safety switching
Integrated voltage regulator
Low power consumption
Parasitic filter

Show

AVS1ACP08 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	44 kHz
Supply Voltage (DC)	-12.0 V, 500 mV (max)
Number of Outputs	1 Output
Output Voltage	600 V
Output Current	40.0 mA
Supply Current	30 mA
Number of Positions	8 Position
Output Current (Max)	0.04 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	110VAC, 220VAC
	Show
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
