AWM5101VN - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC979871
Category:
Flow Sensor
Datasheet:
Datasheet 3D Model
Description:

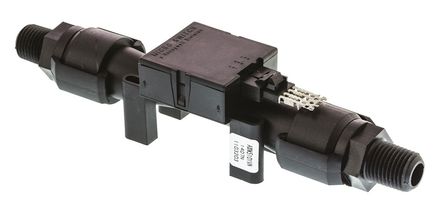

Airflow Sensor 5 LITERS/MIN 1/4 NPT THREAD 1-5VDC LINEAR 4Pin CONNECTOR USES AMP CONNECTOR 103956-3 TO CONNECT
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AWM5101VN is a Microbridge Mass Airflow Sensor features Venturi type flow housing. This airflow sensor measures flow as high as 20 standard litres per minute (SLPM) while inducing a maximum pressure drop of 2.25-inch H2O. The Microbridge chip is in direct contact with the flow stream, greatly reducing error possibilities due to orifice or bypass channel clogging. This sensor contains circuitry which performs amplification, linearization, temperature compensation and gas calibration. A 1 to 5VDC linear output is possible for all listings regardless of flow range (5 SLPM) or calibration gas (nitrogen). This calibration is performed by active laser.
Linear voltage output
Venturi design
Remote mounting capability
Active laser trimming improves interchangeability
Amplified signal conditioning
1/4" 18 NPT port style
±7% reading output shift over temperature
60ms maximum response time
100mW maximum power consumption
-20 to 70°C operating temperature
Laser trimmed
AMP-compatible connector
Amplified signal conditioning
Mass flow pressure sensing
Sensor to sensor interchangeability
Not designed to sense liquid flow and will be damaged by liquid flow through the sensor. Failure to comply with these instructions could result in product damage.

Show

AWM5101VN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	3 Pin
Supply Voltage (DC)	8V ~ 15V
Output Voltage	5 V
Output Voltage (Max)	5 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	15 VDC
Input Voltage	8V ~ 15V
	Show
Size-Height	32.26 mm
Material	Plastic
Weight	60 g
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9026802000
ECCN Code	EAR99
