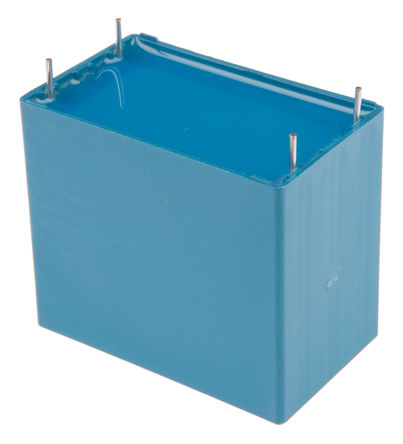

Image is for your reference only,please check specifications for details

B32778G8606K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC79087593
Category:
Film Capacitor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
Cap Film 60uF 800V PP 10% (57.5 X 35 X 50mm) Radial 52.5mm 0.003Ω 105℃ Bulk
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.92

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Typical Application
**
* For Compact Design of: Frequency Converters, Industrial and High-End Power Supplies and Solar Inverters**
Features
**
* Tolerance: 10%**
**
* Overvoltage Capability**
**
* Excellent Self-Healing Properties**
**
* High Reliability**
**
* Long Useful Life**
**
* High CV Product, Compact**
**
* Low Losses with High Current Capability**
Climatic
**
* Max. Operating Temperature: 105°C**
Construction
**
* Dielectric: Metallized Polypropylene Film**
**
* Plastic Case (UL 94 V-0)**
**
* Epoxy Resin Sealing**
Terminals
**
* Parallel Wire Leads, Lead-Free Tinned

Show

B32778G8606K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Radial
Voltage Rating (DC)	800 V
Capacitance	60 µF
Equivalent Series Resistance (ESR)	3 mΩ
Capacitance Tolerance	±10 %
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	800 VDC
	Show
Size-Length	57.5 mm
Size-Width	35 mm
Size-Height	50 mm
Lead Length	6 mm
Dielectric Material	Polypropylene
Operating Temperature	-40℃ ~ 105℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
