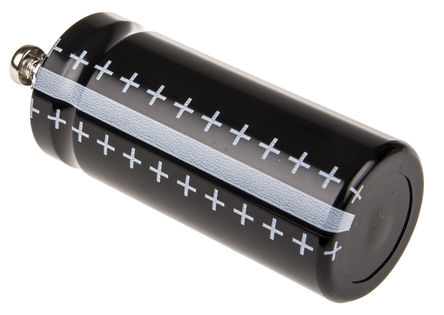

Image is for your reference only,please check specifications for details

B41456B9478M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC75507139
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Lytic 4700uF 100V 20% (35.7 X 80.7mm) Screw Terminal 0.02Ω 6700mA 12000H 85℃
Stock Locations:
Availability:
216 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.22

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Epcos B41456 series are compact, long life polarized aluminium electrolytic capacitors with screw terminals. The capacitance value ranges from 2200µF to 680000µF. These highly reliable capacitors have welded construction for ensuring reliable electrical contacts.
High ripple current capability
Rated voltage range from 16VDC to 100VDC
±20% tolerance
Compliant to IEC 60068-2-6, IEC 60068-1 40/085/56, CECC 30301-810 and IEC 60384-4 standards
Endurance is 12000h at 85°C
Operating temperature range -40°C to 85°C

Show

B41456B9478M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	12.7 mm
Voltage Rating (DC)	100 V
Capacitance	4700 µF
Equivalent Series Resistance (ESR)	40mΩ @100Hz
Capacitance Tolerance	±20 %
Ripple Current	6.7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	100 V
	Show
Size-Height	80.7 mm
Size-Diameter	35.7 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Packaging	Bulk
Life (Hours)	12000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
