B72214P2271K101 Epcos - Varistor - ManyChip Electronics

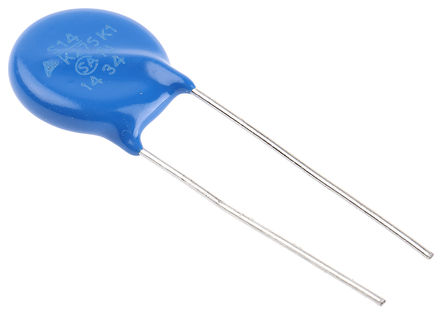

Image is for your reference only,please check specifications for details

B72214P2271K101 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC5378425
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72214P2271K101 – TVS-варротор, напряжение до 275 В и 350 В, серия Advanced-D-MP, выдерживает напряжения до 710 В, диаметр диска 14 мм, металлический оксидный варротор (MOV).
Stock Locations:
Availability:
667 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.47

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

B72214P2271K101 – варротор серии S14 от бренда Advanced-MP, выполненный из металлического оксидного материала. Имеет покрытие из эпоксидной смолы с классификацией UL94V-0 и контакты из меди по гальваническому способу. Поддерживает обработку множества импульсов.
Круглая форма элемента варротора

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	350 V
Voltage Rating (AC)	275 V
Capacitance	290 pF
Clamping Voltage	710 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	350 V
Voltage Rating (AC Max)	275 V
	Show
Size-Length	25 mm
Size-Width	5.9 mm
Size-Height	20 mm
Lead Length	25.0 mm
Size-Thickness	5.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
