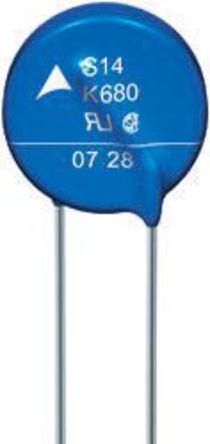

Image is for your reference only,please check specifications for details

B72214P2421K101 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC13875804
Category:
Varistor
Package:
Disc 14mm
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72214P2421K101 TVS Varistor, 420V, 560V, AdvanceD-MP Series, 1.12kV, Disc 14mm, Metal Oxide Varistor (MOV)
Stock Locations:
Availability:
1,232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B72214P2421K101 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Disc 14mm
Voltage Rating (DC)	560 V
Voltage Rating (AC)	420 V
Current Rating	50 A
Capacitance	355 pF
Number of Circuits	1 Circuit
Clamping Voltage	1.12 kV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	560 V
Voltage Rating (AC Max)	420 V
	Show
Size-Length	16.5 mm
Size-Width	8.2 mm
Size-Height	20.5 mm
Lead Length	25.0 mm
Size-Thickness	8.2 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
