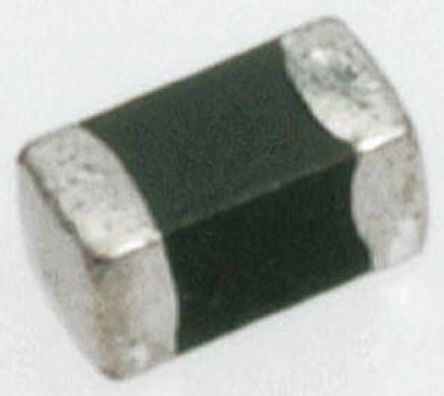

Image is for your reference only,please check specifications for details

B72500D0300H060 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC15411433
Category:
TVS Diode
Package:
SOD-523
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72500D0300H060 ESD Protection Device, TVS, 120V, SOD-523, 2Pins, 30V
Stock Locations:
Availability:
31,791 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B72500D0300H060 is a CeraDiode® ESD Protection Device with very low capacitance. It is suitable for interfaces, data lines in USB, IEEE 1394, Ethernet, parallel port, SATA, DisplayPort, audio lines (digital) and video lines (analogue), DVI, HDMI, ICs and I/O ports.
ESD protection to IEC 61000-4-2, level 4
Bidirectional ESD protection in one component
No change in ESD protection performance at temperatures up to 85°C
Low parasitic inductance
Low leakage current
<0.5ns Fast response time

Show

B72500D0300H060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Operating Voltage	30 V
Capacitance	10 pF
Breakdown Voltage	65.0 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Clamping Voltage	120 V
Test Current	1 mA
Reverse Breakdown Voltage	50 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	30 V
	Show
Size-Length	1.75 mm
Size-Width	0.9 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
