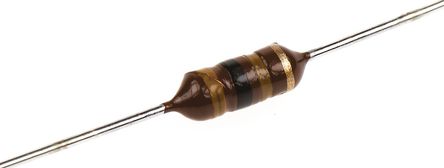

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The B78108S series from EPCOS are axial leaded bobbin core (BC) RF chokes for general purpose applications. The chokes are made up of large ferrite drum core with enamel copper wire winding and flame retardant lacquer coating. The B78108S series RF chokes are suitable for RF blocking, filtering, decoupling, interference suppression, antenna systems and energy saving lamps.
- Selectable inductance value from 1µH to 4700µH
- Rated current range from 55mA to 1.2A
- ±5% and ±10% tolerance
- Suitable for wave soldering
- Base material is copper
- Electroplated with nickel and pure tin
- Electroplated with nickel and pure tin
B78108S1104J000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Axial |
| Number of Pins | 2 Pin |
| Current Rating | 370 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 100 µH |
| Self Resonant Frequency | 5 MHz |
| Q-Factor | 70.0 |
| Inductance Tolerance | ±5 % |
| Test Frequency | 0.1 MHz |
| DC Resistance (DCR) | 1.7 Ω |
| Current Rating (DC) | 370 mA |
| Resistance (DC Max) | 1.7 Ω |
| Show | |
| Size-Length | 11.5 mm |
| Size-Diameter | 4.00 mm |
| Lead Length | 25.0 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
