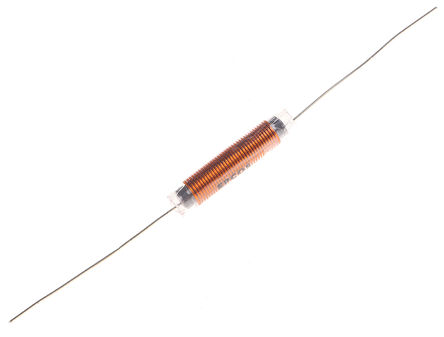

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82111B0000C020 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Current Rating	3 A
Inductance	20 µH
Self Resonant Frequency	125 MHz
Resonant Frequency	125 MHz
Inductance Tolerance	±20 %
Test Frequency	0.1 MHz
DC Resistance (DCR)	54 mΩ
Current Rating (DC)	3 A
Resistance (DC Max)	0.054 Ω
	Show
Size-Length	29 mm
Size-Diameter	6.00 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
