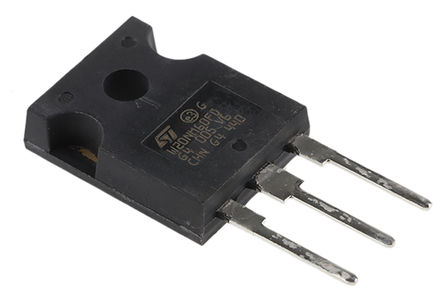

Image is for your reference only,please check specifications for details

STW20NM60FD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1677369
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
N-CHANNEL 600V 0.26Ω 20A TO-220 TO-220FP TO-247 FDMESH POWER MOSFET
Stock Locations:
Availability:
1,056 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STW20NM60FD is a FDmesh™ N-channel Power MOSFET features low input capacitance and gate charge. The FDmesh™ associates all advantages of reduced ON-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters.
High dV/dt and avalanche capabilities
100% Avalanche tested
Tight process control and high manufacturing yields

Show

STW20NM60FD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	20.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.26 Ω
Polarity	N-Channel
Power Dissipation	214 W
Threshold Voltage	4 V
Input Capacitance	1.30 nF
Gate Charge	37.0 nC
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	20.0 A
Rise Time	12 ns
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	214 W
Fall Time	22 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	214W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
