Description
- FEATURES
- • 8 to 35 volt operation
- • 5V reference trimmed to ±1%
- • 1Hz to 350KHz oscillator range
- • Dual 100mA source/sink outputs
- • Digital current limiting
- • Double pulse suppression
- • Programmable deadtime
- • Undervoltage lockout
- • Single pulse metering
- • Programmable soft-start
- • Wide current limit common mode range
- • TTL/CMOS compatible logic ports
- • Symmetry correction capability
- • Guaranteed 6 unit synchronization
- HIGH RELIABILITY FEATURES - SG1526
- ♦Available to MIL-STD-883B and DESC SMD
- ♦Radiation data available
- ♦LMI level "S"processing available

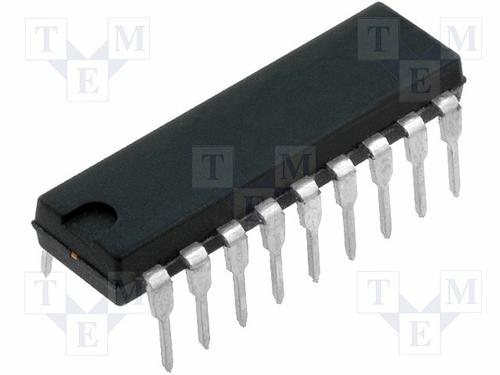

SG3526N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 18 Pin |
| Case/Package | DIP-18 |
| Frequency | 350 kHz |
| Supply Voltage (DC) | 35.0V (max) |
| Operating Voltage | 4.5V ~ 35V |
| Number of Outputs | 2 Output |
| Output Current | 0.1 A |
| Number of Channels | 2 Channel |
| Quiescent Current | 18.0 mA |
| Rise Time | 300 ns |
| Switching Frequency | 1Hz ~ 350kHz |
| Duty Cycle | 49 % |
| Maximum Duty Cycle | 0.49 |
| Fall Time | 100 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 8V ~ 35V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
