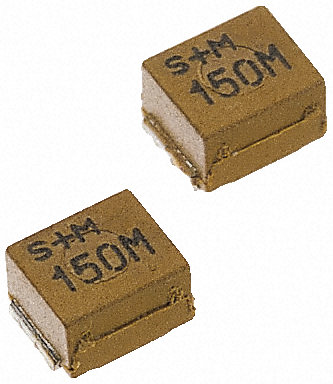

Image is for your reference only,please check specifications for details
- B82422A1222K100 - Epcos
-
Manufacturer:Epcos
-
ManyChip's Part#:MC43200833
-
Category:Inductor
-
Package:1210
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Chip Molded Wirewound 2.2uH 10% 1MHz 25Q-Factor Ferrite 270mA 750mOhm DCR 1210 Automotive T/R
-
Stock Locations:
-
Availability:9,558 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.27
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2.2µH Unshielded Wirewound Inductor 270mA 750mOhm Max 2-SMD, J-Lead
B82422A1222K100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 270 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 125 MHz |
| Q-Factor | 25.0 |
| Resistance | 750 mΩ |
| Resonant Frequency | 125 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤750 mΩ |
| Current Rating (DC) | 270 mA |
| Operating Temperature (Max) | 145 ℃ |
| Resistance (DC Max) | 750 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 2 mm |
| Weight | 50.0 mg |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
