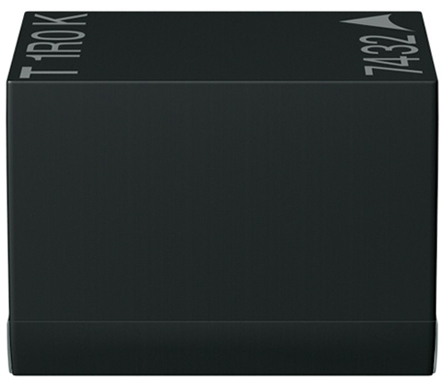

Image is for your reference only,please check specifications for details

B82432T1103K000 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC10816759
Category:
Inductor Surface Mount
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Inductor Chip Molded Wirewound 10uH 10% 2.52MHz 10Q-Factor Ferrite 650mA 350mOhm DCR 1812 Automotive T/R
Stock Locations:
Availability:
10,326 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82432T1103K000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	4532
Case/Package	1812
Current Rating	650 mA
Capacitance Tolerance	±10 %
Inductance	10 µH
Self Resonant Frequency	25 MHz
Q-Factor	10.0
Inductance Tolerance	±10 %
Test Frequency	2.52 MHz
DC Resistance (DCR)	0.35 Ω
Current Rating (DC)	650 mA
Operating Temperature (Max)	150 ℃
Resistance (DC Max)	0.35 Ω
	Show
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	3.2 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
