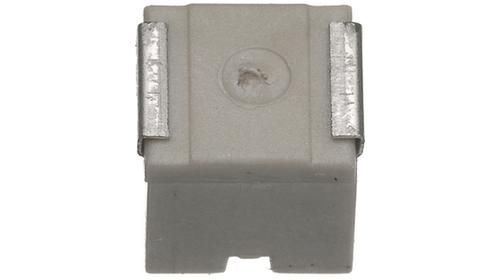

Image is for your reference only,please check specifications for details

B82442H1103K - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC57995748
Category:
Inductor
Package:
2220
Datasheet:
Datasheet 3D Model
Description:
Inductor RF Molded Wirewound 10uH 10% 2.52MHz 10Q-Factor Ferrite 1A 168mOhm DCR 2220 Automotive T/R
Stock Locations:
Availability:
1,984 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.03

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

B82442 Series 2220 10 uH ±10% 690 mA 0.168 Ohm SMT Unshielded Wirewound Inductor

Show

B82442H1103K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2220
Current Rating	1 A
Capacitance Tolerance	±10 %
Inductance	10 µH
Self Resonant Frequency	19 MHz
Q-Factor	10.0
Resistance	168 mΩ
Resonant Frequency	19.0 MHz
Shielding	No
Inductance Tolerance	±10 %
Test Frequency	2.52 MHz
DC Resistance (DCR)	≤168 mΩ
Current Rating (DC)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.168 Ω
	Show
Size-Length	5.6 mm
Size-Width	5 mm
Size-Height	5 mm
Operating Temperature	-55℃ ~ 150℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
