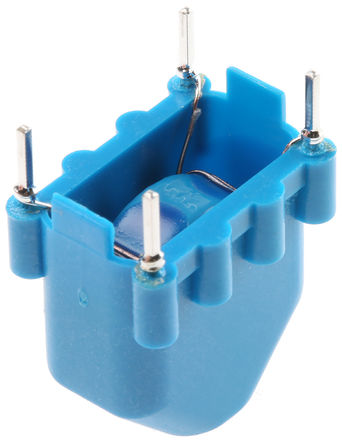

Image is for your reference only,please check specifications for details

B82721K2202N001 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC10256233
Category:
Inductor Choke
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
Epcos 1000uH +/-30% Ferrite Power Inductor; 2A Idc; 80mOhms Rdc B82721A
Stock Locations:
Availability:
3,940 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.2

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82721K2202N001 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Through Hole
Current Rating	2 A
Capacitance Tolerance	±30 %
Inductance	1 mH
Resistance	80.0 mΩ
Test Frequency	100 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 VAC
Resistance (DC Max)	80 mΩ
	Show
Size-Length	18.2 mm
Size-Width	13.2 mm
Size-Height	20.3 mm
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
