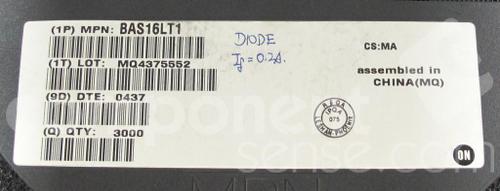

Image is for your reference only,please check specifications for details
- BAS16LT1 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC53916529
-
Category:TVS Diode
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:Diode Small Signal Switching 75V 0.2A 3Pin SOT-23 T/R
-
Stock Locations:
-
Availability:211 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.02
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The switching diode is designed for high speed switching applications. This device is housed in a SOT-23 surface mount package which is ideal for automated insertion.
- Features
- ---
- |
- Pb-Free Package is Available
- S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable
BAS16LT1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Current Rating | 200 mA |
| Capacitance | 2.00 pF |
| Output Current | ≤200 mA |
| Forward Voltage | 1.25V @150mA |
| Polarity | Standard |
| Thermal Resistance | 556℃/W (RθJA) |
| Reverse recovery time | 6 ns |
| Maximum Forward Voltage (Max) | 1.25V @150mA |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
