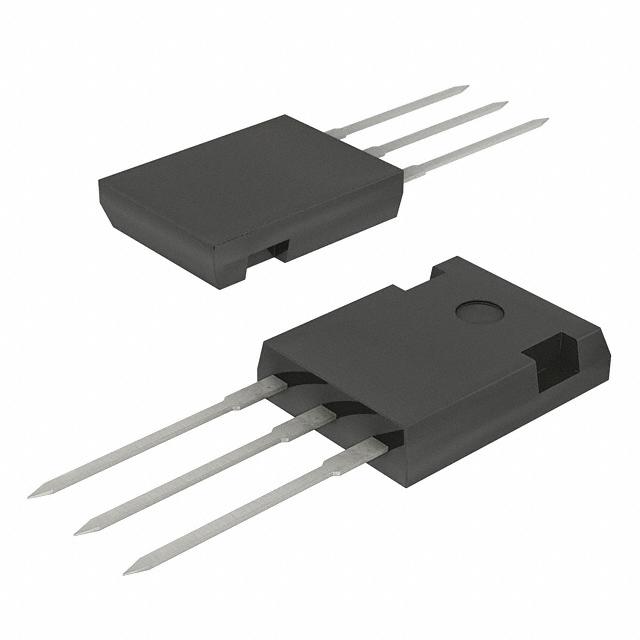

Image is for your reference only,please check specifications for details

Updated at 18/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXTH500N04T2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Drain to Source Resistance (on) (Rds)	1.6 mΩ
Power Dissipation	1000 W
Threshold Voltage	3.5 V
Drain to Source Voltage (Vds)	40 V
Breakdown Voltage (Drain to Source)	40 V
Rise Time	16 ns
Input Capacitance (Ciss)	25000pF @25V(Vds)
Fall Time	44 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000W (Tc)
	Show
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.46 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
