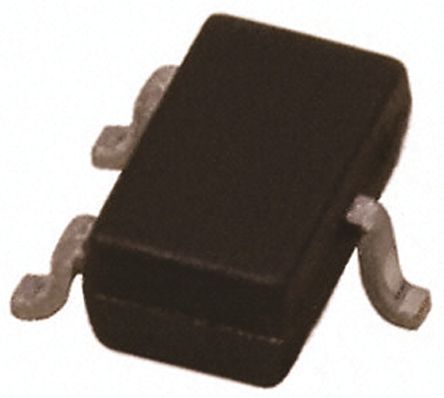

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- • Very low dynamic impedance at low currents: approximately 1⁄20 of conventional series • Hard breakdown knee • Low noise: approximately 1⁄10 of conventional series • Total power dissipation: max. 250 mW • Small tolerances of VZ • Working voltage range: nominal 5.00 to 6.80 V • Non-repetitive peak reverse power dissipation: maximal 30 W. • Low current, low power, low noise applications • CMOS RAM back-up circuits • Voltage stabilizers • Voltage limiters • Smoke detector relays. • Low-voltage avalanche regulator diodes
PLVA662A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-6 |
| Power Dissipation | 250 mW |
| Test Current | 250 µA |
| Zener Voltage | 6.2 V |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1 mm |
| Temperature Coefficient | 2.65 mV/K |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
