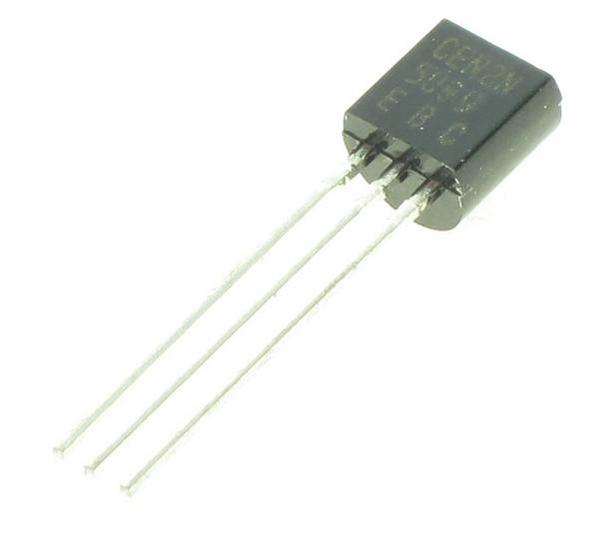

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2N5089 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	25 V
hFE Min	400 @10mA, 5V
hFE Max	400
Input Power (Max)	625 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	625 mW
	Show
Size-Length	5.21 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
