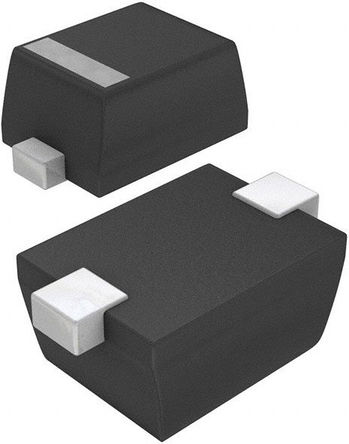

BAS16SL - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC15434535
Category:
Small Signal Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR BAS16SL Small Signal Diode, Single, 85V, 150mA, 1.25V, 8ns, 500mA
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAS16SL is a Small Signal Diode for general usage and suitable for many different applications.
Low forward voltage drop
Fast switching
Very small and thin SMD package
0.43mm Profile height (maximum)
1.0 x 0.6mm Footprint

Show

BAS16SL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	1.25V @150mA
Power Dissipation	227 mW
Thermal Resistance	520℃/W (RθJA)
Reverse recovery time	8 ns
Forward Current	150 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	150 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.39 mm
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
