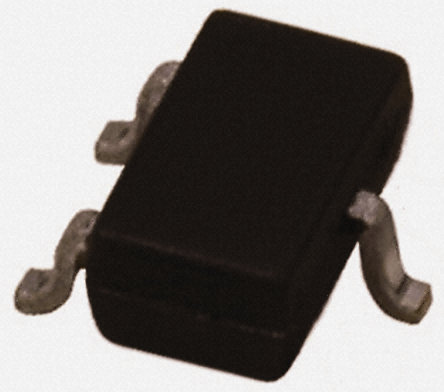

- BAT30CWFILM - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC11500529
-
Category:Diode Array, TVS Diode Array
-
Package:SOT-323-3
-
Datasheet:Datasheet 3D Model
-
Description:STMICROELECTRONICS BAT30CWFILM Small Signal Schottky Diode, Dual Common Cathode, 30V, 300mA, 580mV, 1A, 150℃
-
Stock Locations:
-
Availability:325 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.07
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Array 1 Pair Common Cathode Schottky 30V 300mA (DC) Surface Mount SC-70, SOT-323
BAT30CWFILM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323-3 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 300 mA |
| Capacitance | 22 µF |
| Number of Positions | 3 Position |
| Forward Voltage | 530mV @300mA |
| Forward Current | 300 mA |
| Max Forward Surge Current (Ifsm) | 1 A |
| Maximum Forward Voltage (Max) | 580 mV |
| Forward Current (Max) | 300 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Junction Temperature | 150℃ (Max) |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
