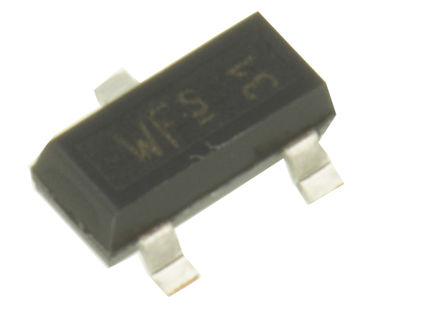

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features • Switching circuit, inverter, interface circuit,driver circuit • Built in bias resistor (R1=4.7kΩ, R2=4.7kΩ)

Show

BCR112 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Frequency	140 MHz
Polarity	NPN
Power Dissipation	200 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	20
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	1 mm
Product Lifecycle Status	End of Life
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
