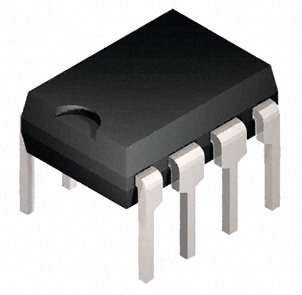

Image is for your reference only,please check specifications for details

AD746JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC8045559
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD746JNZ Operational Amplifier, Dual, 2 Amplifier, 13MHz, 75V/µs, ± 4.5V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 44.08

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD746JNZ is a precision dual BiFET Operational Amplifier offers excellent DC characteristics plus rapid settling times, high slew rates and ample bandwidths. In addition, the AD746 provides the close matching AC and DC characteristics inherent to amplifiers sharing the same monolithic die. The single pole response of the AD746 provides fast settling of 500ns to 0.01%. This feature, combined with its high DC precision, makes it suitable for use as a buffer amplifier for 12- or 14-bit DACs and ADCs. Furthermore, the AD746"s low total harmonic distortion (THD) level of 0.0001% and very close matching AC characteristics make it an ideal amplifier for many demanding audio applications. The AD746 is internally compensated for stable operation as unity gain inverter or as a non-inverting amplifier with a gain of 2 or greater. It is available in four performance grades.
Indefinite output short-circuit duration
Internal compensation for gains of +2 or greater
500mW Internal power dissipation
0.0001% Total harmonic distortion (THD)
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD746JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Current	7 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	0.5 W
Common Mode Rejection Ratio	88 dB
Input Capacitance	5.50 pF
Bandwidth	13 MHz
Slew Rate	75.0 V/μs
Gain Bandwidth Product	13 MHz
Input Impedance	250 GΩ
Input Offset Voltage	300 µV
Input Bias Current	110 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	13 MHz
Gain Bandwidth	13 MHz
Power Dissipation (Max)	500 mW
Minimum CMRR Range	72 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.91 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
