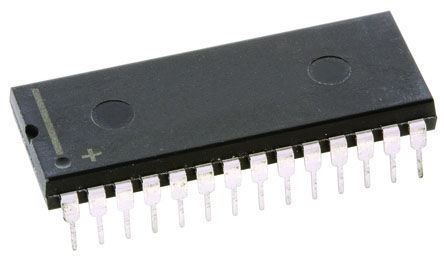

Image is for your reference only,please check specifications for details
- ADS574KP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC75726033
-
Category:Analog to Digital, ADC IC
-
Package:PDIP-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter Microprocessor-Compatible Sampling CMOS A/D Converter ADC Single SAR 40KSPS 12Bit Parallel 28Pin PDIP Tube
-
Stock Locations:
-
Availability:1,966 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 30.96
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-PDIP
ADS574KP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | PDIP-28 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 13.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 65 mW |
| Sample Rate | 40 ksps |
| Power Consumption | 65.0 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 100 mW |
| Number of Input Channels | 1 Channel |
| Show | |
| Size-Length | 37.4 mm |
| Size-Width | 13.53 mm |
| Size-Height | 4.07 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
