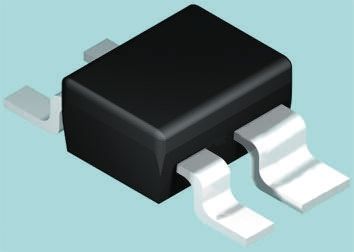

Image is for your reference only,please check specifications for details

BCR402R - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC148773919
Category:
LED Driver
Package:
SOT-143
Datasheet:
Datasheet 3D Model
Description:
Light Emitting Diode (LED) Driver IC Provides Constant LED Current Independent of Supply Voltage Variation
Stock Locations:
Availability:
375 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.15

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
LED drive current of 20mA
Output current adjustable up to 60mA with external resistor
Supply voltage up to 18V
Easy paralleling of drivers to increase current
Low voltage overhead of 1.2V
High current accuracy at supply voltage variation
No EMI
Reduced output current at higher temperatures - negative thermal coefficient of -0.3% / K
RoHS compliant (pb-free) SOT143R package
Qualified according AEC Q101
Benefits:
homogenous light output despite varying forward voltages in different LED strings
homogenous light output of LED’s despite voltage drop across long supply lines
homogenous light output independent from supply voltage variations
longer lifetime of the LED’s due to reduced output current at higher temperatures (negative thermal coefficient)
Target Applications:
Channel letters for advertising, LED strips for decorative lighting
Aircraft, train, ship illumination
Retrofits for general lighting, white goods like refrigerator lighting
Medical lighting

Show
