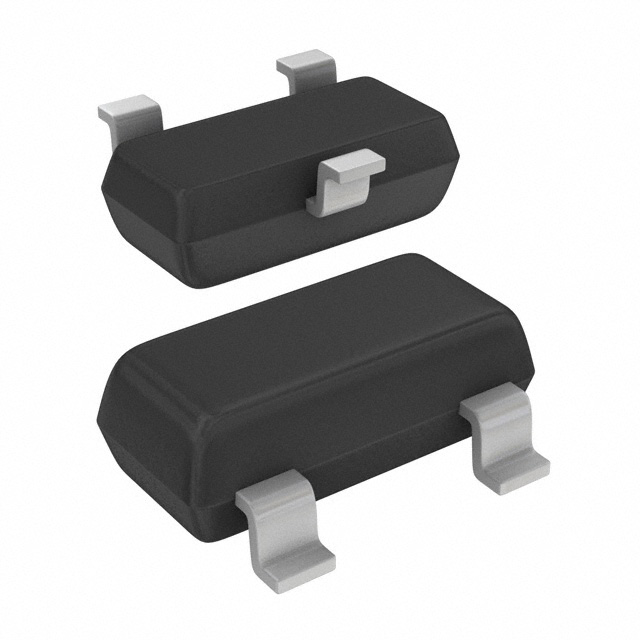

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BFU530AR RF amplifier from NXP Semiconductors can provide you an alternative to traditional BJTs in that it can work with higher radio frequencies. This RF transistor has a minimum operating temperature of -40 °C and a maximum of 150 °C.

Show

BFU530AR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Power Dissipation	450 mW
Input Capacitance	0.83 pF
Output Power	10 dBm
Breakdown Voltage (Collector to Emitter)	12 V
Gain	18 dB
hFE Min	60 @10mA, 8V
Input Power (Max)	450 mW
DC Current Gain (hFE)	60
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Supply Voltage	24 V
	Show
Material	Silicon
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
