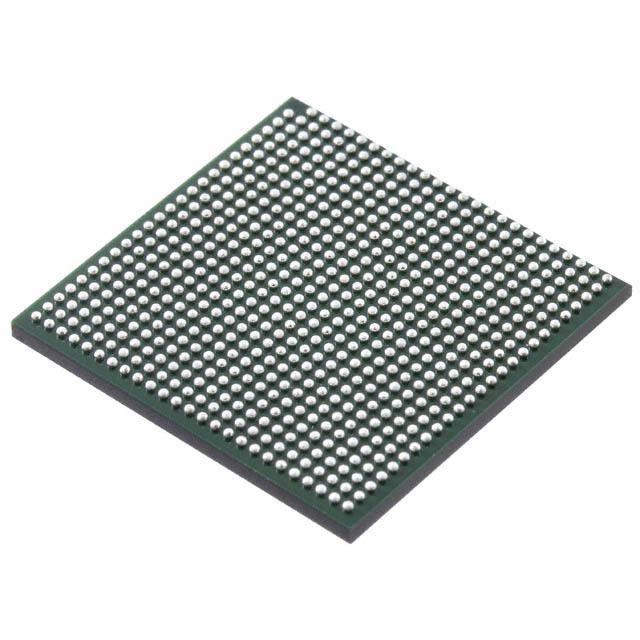

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The i.MX 6 series of applications processors combines scalable platforms with broad levels of integration and power-efficient processing capabilities particularly suited to multimedia applications. The i.MX 6Dual processor features:
- * Enhanced capabilities of high-tier portable applications by fulfilling MIPS needs of operations systems and games
- * Multilevel memory system
- * Smart speed technology that enables the designer to deliver a feature-rich product, requiring levels of power far lower than industry expectations
- * Dynamic voltage and frequency scaling
- * Powerful graphics acceleration
- * Interface flexibility
- * Integrated power management throughout the device
- * Advanced hardware-enabled security
- The i.MX 6Dual is supported by a companion NXP® power management IC (PMIC), MMPF0100.
- MoreLess
- ## Features
- ### CPU Complex
- * 2x ARM® Cortex™-A9 up to 1.2 GHz
- * 1 MB L2 cache
- * 32 KB instruction and data caches
- * NEON SIMD media accelerator
- ### Multimedia
- * GPU 3D
- * Vivante GC2000
- * 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
- * GPU 2D(Vector Graphics)
- * Vivante GC355
- * 300Mpxl/s, OpenVG 1.1
- * GPU 2D(Composition)
- * Vivante GC320
- * 600Mpxl/s, BLIT
- * Video Decode
- * 1080p 60 h.264
- * Video Encode
- * 1080p30 H.264 BP/ Dual 720p encode
- * Camera Interface
- * Types:1x 20-bit parallel, MIPI-CSI2 (4 lanes), three simultaneous inputs
- ### Memory
- * DDR
- * 2x32 LP-DDR2, 1x64 DDR3 / LV-DDR3
- * NAND
- * SLC/MLC, 40-bit ECC, ONFI2.2, DDR
- ### Connectivity
- * Four USB2.0
- * 1xHS OTG + PHY
- * 1xHost + PHY
- * 2xHost USB HSIC
- * Ethernet
- * 1 Gbps + IEEE1588
- * Expansion Ports
- * 3x SD/MMC 4.4, 1x SDXC
- * 5x SPI, 5x UART, 3x I²C
- * MIPI-HSI
- * PCIe 2.0 (1 lane)
- ### Display
- * 2 x 4XGA (2048x1536) or 2 x [1080p + WXGA (1280x720)]
- * EPDC, LVDS, Parallel, MIPI-DSI
- ### Advanced Power Management
- * PMU integration
- * NXP® PF100 power management unit
- ### Security
- Advanced security supporting:
- * High Assurance Boot
- * Cryptographic cipher engines
- * Random number generator
- * Tamper detection
- ### Package and Temperature
- * 21 x 21mm, 0.8 mm BGA
- * Consumer (-20C to +105C), up to 1.2 GHz
- * Industrial (-40C to +105C), up to 800 MHz
- * Automotive (-40C to +125C), AEC-Q100, up to 1 GHz
MCIMX6D5EYM10AE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 624 Pin |
| Case/Package | FCBGA-624 |
| RAM Memory Size | 272 KB |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Show | |
| Weight | 1287.1 mg |
| Operating Temperature | -20℃ ~ 105℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
