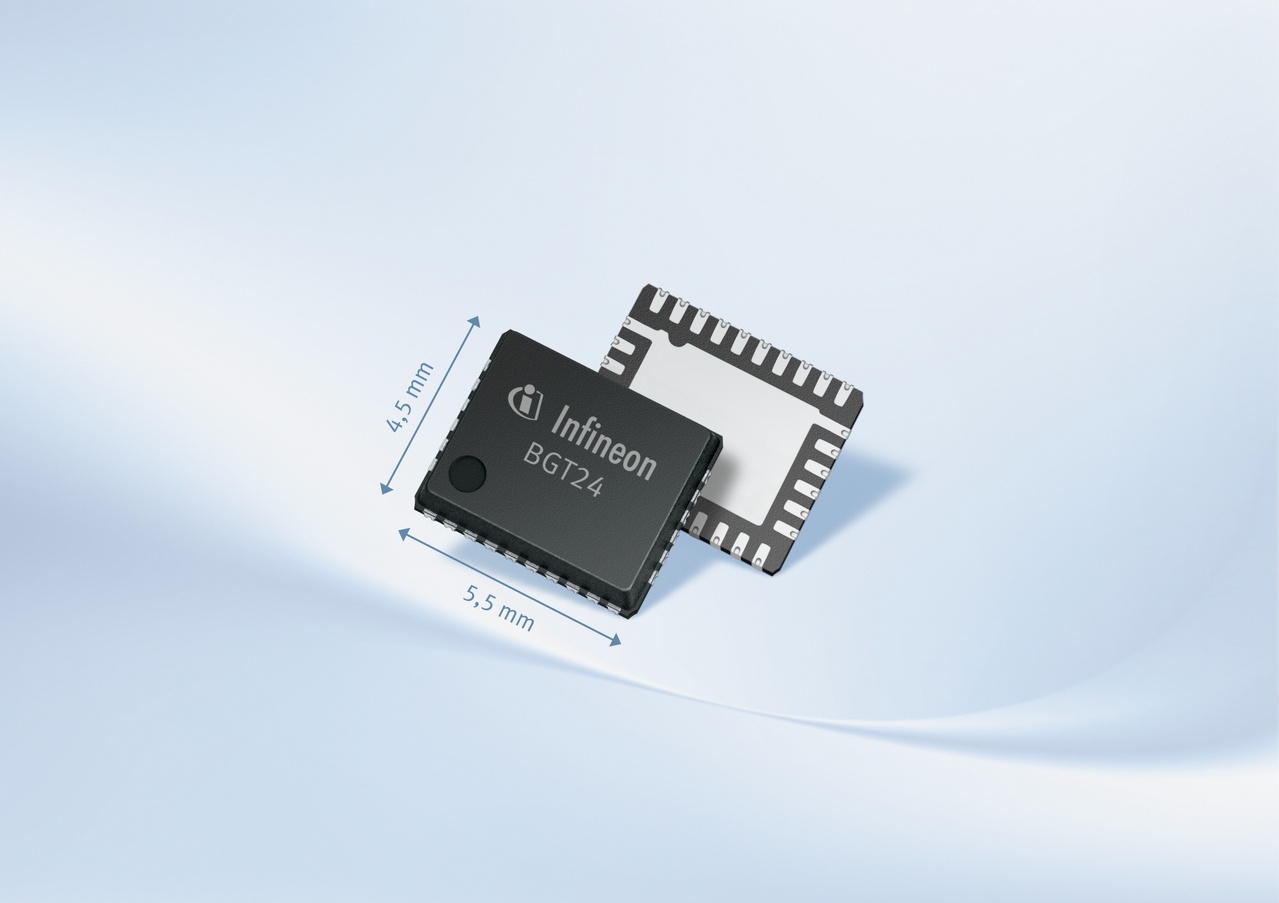

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The BGT24MTR12 is a silicon germanium MMIC for signal generation and reception, operating from 24.00 to 26.00GHz. It is based on a 24GHz fundamental voltage controlled oscillator. A switchable frequency prescaler is included with output frequencies of 1.5GHz and 23kHz. The main RF output delivers up to 8 dBm signal power to feed an antenna. A RC polyphase filter (PPF) is used for LO quadrature phase generation of the homodyne quadrature downconversion mixer. Output power sensors as well as a temperature sensor are implemented for monitoring purposes. The device is controlled via SPI and is manufactured in a 0.18μm SiGe:C technology offering a cutoff frequency of 200GHz. The MMIC is packaged in a 32 pin leadless RoHs compliant VQFN package.
Summary of Features:
24GHz ISM band transceiver MMIC with one transmitter and two receiver units
Fully integrated low phase noise VCO
Switchable prescaler with 1.5GHz and 23kHz output
On chip power and temperature sensors
Gilbert based homodyne quadrature receiver
Single ended RF input terminal
Low noise figure NFSSB: 12 dB
High conversion gain: 26 dB
High 1 dB input compression point: -12 dBm
Single supply voltage 3.3 V
Low power consumption 660 mW
200GHz bipolar SiGe:C technology b7hf200
Fully ESD protected device
VQFN-32-9 leadless plastic package incl. LTI feature
Pb-free (RoHS compliant) package
