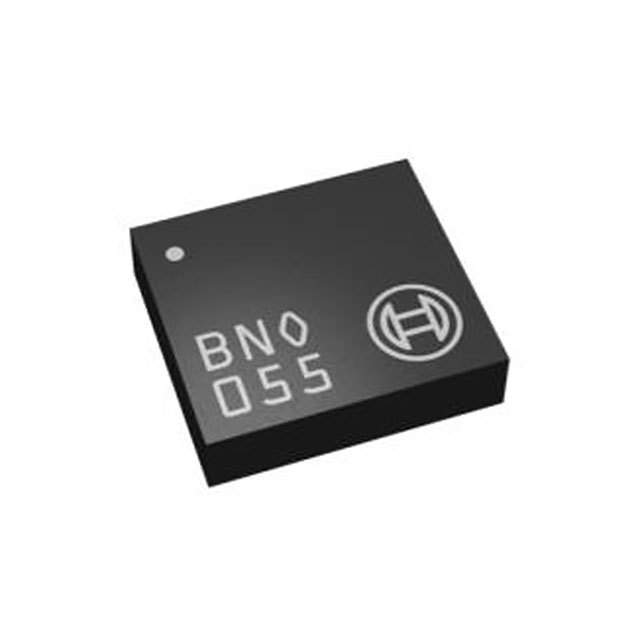

Image is for your reference only,please check specifications for details
- BNO055 - Bosch Sensortec
-
Manufacturer:Bosch Sensortec
-
ManyChip's Part#:MC200404
-
Category:Motion Sensor
-
Package:LGA-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog Circuit, 1 Func, 3.80 X 5.2MM, 1.13MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, LGA-28
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 38.86
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I²C, UART Output
BNO055 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | LGA-28 |
| Supply Current | 12.3 mA |
| Bandwidth | 1000 Hz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage | 2.4V ~ 3.6V |
| Supply Voltage (Max) | 3.6 VDC |
| Supply Voltage (Min) | 2.4 VDC |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
