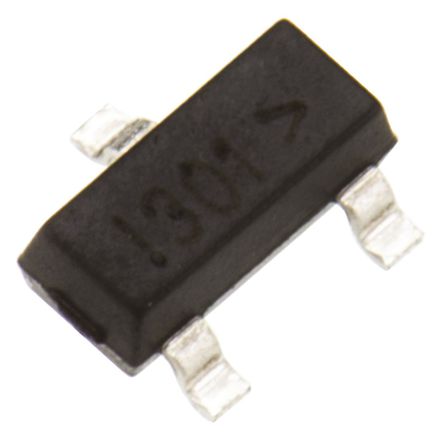

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDV301N from Fairchild is a surface mount, N channel logic level enhancement mode digital FET in SOT-23 package. This device features high cell density, DMOS technology which has been especially tailored to minimize the onstate resistance and maintain low gate charge for superior switching performance, this one N channel FET can replace several different digital transistors with different bias resistor values. FDV301N is suitable for low voltage and power management applications.
Drain to source voltage (Vds) of 25V
Gate to source voltage of 8V
Continuous drain current (Id) of 220mA
Power dissipation (Pd) of 350mW
Low on state resistance of 3.1ohm at Vgs 4.5V
Operating temperature range -55°C to 150°C

Show

FDV301N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	25.0 V
Current Rating	220 mA
Power Rating	350 mW
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	3.1 Ω
Polarity	N-Channel
Power Dissipation	350 mW
Threshold Voltage	850 mV
Input Capacitance	9.50 pF
Gate Charge	700 pC
Drain to Source Voltage (Vds)	25 V
Breakdown Voltage (Drain to Source)	25.0 V
Breakdown Voltage (Gate to Source)	8.00 V
Continuous Drain Current (Ids)	220 mA
Rise Time	6 ns
Input Capacitance (Ciss)	9.5pF @10V(Vds)
Input Power (Max)	350 mW
Fall Time	3.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350mW (Ta)
	Show
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	0.93 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
