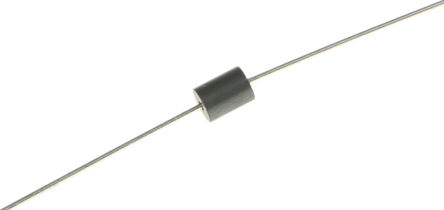

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BL01 series from Murata are axial leaded EMIFIL ferrite beads inductor. These inductor type EMI suppression filters are designed to operate from several MHz to several GHz. They are widely used as general purpose noise suppression components to cope with relatively minor noise issues. EMIFIL Inductor type filters behave as inductors with small inductance at low frequencies, while they produce a resistance dominated impedance at high frequencies. When these ferrite beads are serially inserted into a noise transmission path, the resistance component absorbs and prevents the transmission of noise.
- 3.6mm beads diameter
- Rated current of 7A or 6A
- 0.45µH inductance at 1MHz
- DC resistance max of 0.02ohm
- Operating temperature range -40°C to +85°C
- High frequency loss for suppression of noise
BL01RN1A1D2B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Current Rating | 7 A |
| Number of Circuits | 1 Circuit |
| Resistance | 50.0 Ω |
| Shielding | No |
| DC Resistance (DCR) | 0.02 Ω |
| Current Rating (Max) | 7 A |
| Current Rating (DC) | 7 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 20 mΩ |
| Show | |
| Size-Length | 8.3 mm |
| Size-Width | 3.6 mm |
| Size-Height | 3.6 mm |
| Lead Length | 20.0 mm |
| Material | Ferrite |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
