SWITCHMODE Power Rectifiers
Ultrafast “E’’ Series with High Reverse Energy Capability
These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.
Features
•20 mJ Avalanche Energy Guaranteed
•Excellent Protection Against Voltage Transients in Switching Inductive Load Circuits
•Ultrafast 75 Nanosecond Recovery Time
•175°C Operating Junction Temperature
•Low Forward Voltage
•Low Leakage Current
•High Temperature Glass Passivated Junction
•Reverse Voltage to 1000 V
•These are Pb−Free Devices

Show

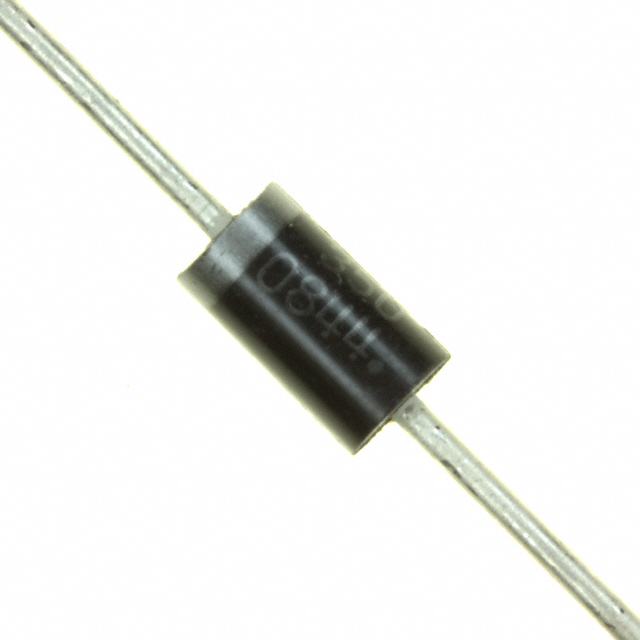

MUR4100E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AA
Voltage Rating (DC)	1.00 kV
Current Rating	4.00 A
Output Current	≤4.00 A
Forward Voltage	1.85V @4A
Polarity	Standard
Reverse recovery time	100 ns
Max Repetitive Reverse Voltage (Vrrm)	1000V
Forward Current	4 A
Max Reverse Leakage Current (Ir)	0.9mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
