Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

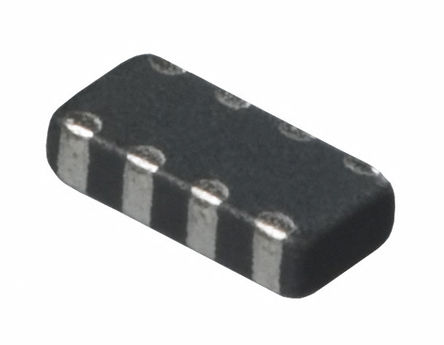

- 1 kOhms @ 100MHz 4 Signal Line Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 50mA 550mOhm
BLA31BD102SN4D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1206 |
| Current Rating | 50 mA |
| Number of Circuits | 4 Circuit |
| Resistance | 1.00 kΩ |
| Impedance | 1.00 kΩ |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | 0.55 Ω |
| Current Rating (Max) | 50 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 550 mΩ |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1 mm |
| Material | Ferrite |
| Weight | 0.018 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
