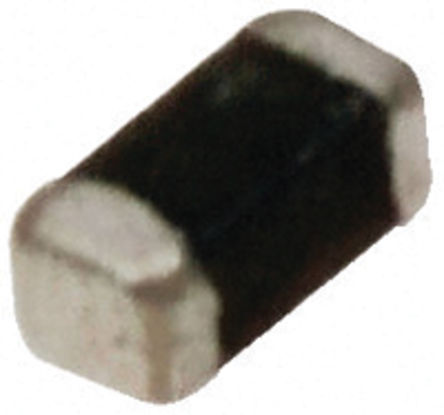

Image is for your reference only,please check specifications for details

BLM03AX601SN1D - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC7364164
Category:
Ferrite
Package:
0201
Datasheet:
Datasheet 3D Model
Description:
MURATA BLM03AX601SN1D Ferrite Bead, 600Ω, 0201 [0603 Metric], BLM03AX_SN Series, 250mA, 0.85Ω, ± 25%
Stock Locations:
Availability:
14,005 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BLM03AX_SN series Ferrite Bead offers ultra low DC resistance and wide impedance line up suitable for both power lines and signal lines. Lower voltage down at ferrite bead is good for battery driven equipment by saving running voltage margin.
Optimum ferrite firing condition
Fine Piling technology
Advanced Coil Pattern Design technology
Improved stability of performance at heat shock
High rated current - Good for miniaturize of high power equipment
Lower voltage down at ferrite bead
Higher reliability
Wide line-up from 10 to 1000R (at 100MHz) useful for signal line

Show

BLM03AX601SN1D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	0603
Case/Package	0201
Current Rating	250 mA
Number of Circuits	1 Circuit
Resistance	600 Ω
Impedance	600 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	0.85 Ω
Current Rating (Max)	250 mA
Current Rating (DC)	250 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±25 %
Resistance (DC Max)	850 mΩ
	Show
Size-Length	0.6 mm
Size-Width	0.3 mm
Size-Height	0.33 mm
Material	Ferrite
Weight	0.0003 g
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	15000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
