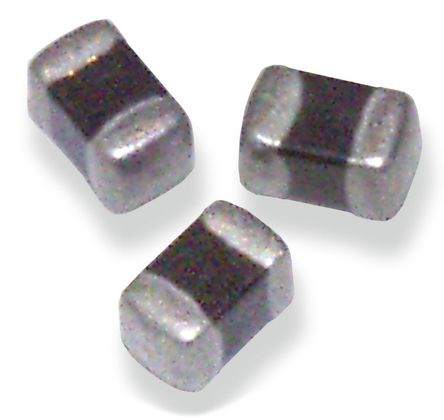

Image is for your reference only,please check specifications for details
- BMB2A0120AN4 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC23854141
-
Category:Ferrite
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:TE CONNECTIVITY / SIGMA INDUCTORS BMB2A0120AN4 Ferrite Bead, 120Ω, 0805 [2012 Metric], BMB-A Series, 300mA, 0.3Ω, ± 25%
-
Stock Locations:
-
Availability:240 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BMB-A series Multilayer Ferrite Bead cover a wide range of impedance characteristics. The chip bead has a monolithic inorganic material construction that minimises the effect of electromagnetic interference. This series is offered in 0402, 0603, 0805 and 1206 package sizes.
- Effective EMI protection
- Wide frequency characteristics
- High soldering heat resistance
- Matte Sn over Cu/Ni under-plate terminal finish
- High loss types for general use
BMB2A0120AN4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Resistance | 300 mΩ |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 300 mA |
| Current Rating (DC) | 300 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 0.3 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.9 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8504508000 |
| ECCN Code | EAR99 |
