Description

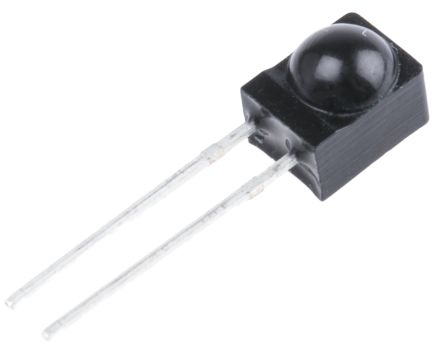

The BPV22NF is a black Silicon PIN Photodiode with high speed and high radiant sensitivity. Filter bandwidth is matched with 870 to 950nm IR emitters.
High radiant sensitivity
Fast response times
±60° Angle of half sensitivity

Show

BPV22NF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	SOT-23
Supply Voltage (DC)	1.30 V
Current Rating	50.0 A
Capacitance	70.0 pF
Breakdown Voltage	60.0 V
Number of Positions	2 Position
Forward Voltage	1.3 V
Wavelength	940 nm
Viewing Angle	120°
Peak Wavelength	940 nm
Power Dissipation	215 mW
Rise Time	100 ns
Reverse Breakdown Voltage	60 V
Fall Time	100 ns
Fall Time (Max)	100 ns
Fall Time (Max)	100 ns
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	215 mW
	Show
Size-Length	4.5 mm
Size-Width	5 mm
Size-Height	6 mm
Lead Length	26.5 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2011/06/20
ECCN Code	EAR99
