- 3213140 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC67073211
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-

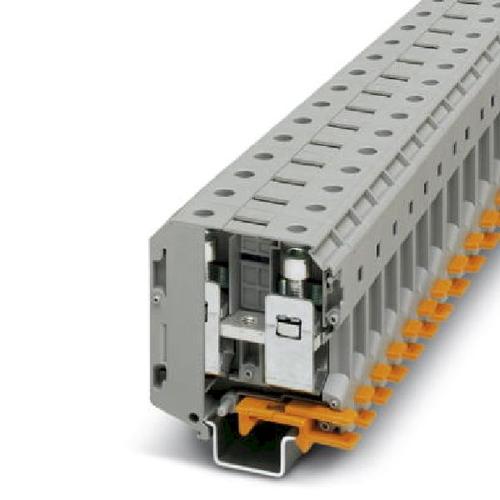

Description:Conn Feed-Through Modular Terminal Blocks 2POS Screw G DIN Rail/T DIN Rail
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Features
- * Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- * Tested for railway applications
- * Low contact resistance of the contact surface due to ribbing
- * Screw locking by means of spring-loaded elements in the clamping part
3213140 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Wire Gauge | 16mm² ~ 95mm² |
| Current Rating | 192 A |
| Number of Circuits | 2 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 192 A |
| Voltage Rating (Max) | 1000 V |
| Voltage Rating | 1 kV |
| Operating Voltage (Max) | 1000 V |
| Show | |
| Size-Length | 70.5 mm |
| Size-Width | 20.3 mm |
| Size-Height | 78.3 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
