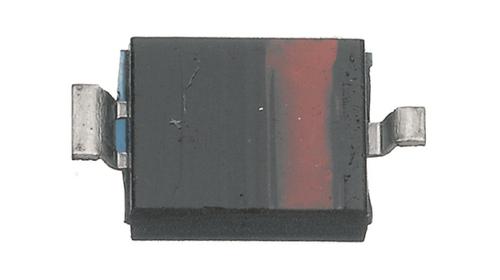

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BPW34FS is a Silicon PIN Photodiode with daylight blocking filter. It has a radiant sensitive area of 2.65x2.65mm² and short switching time. It is suitable for reflow soldering. It is suitable for applications from 780 to 1100nm.

Show

BPW34FS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-2
Rise/Fall Time	20 ns
Number of Positions	2 Position
Wavelength	950 nm
Viewing Angle	120°
Peak Wavelength	850 nm
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
