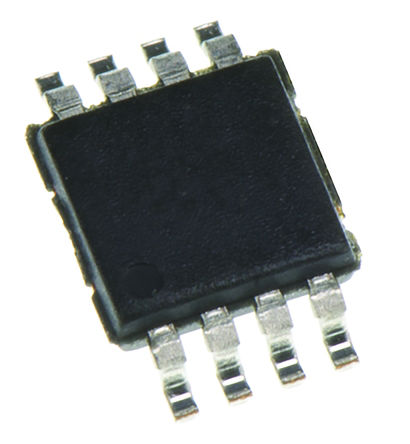

Image is for your reference only,please check specifications for details
- OP470EY - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1261613
-
Category:Operational Amplifier, OP Amp IC
-
Package:CDIP-14
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES OP470EY Operational Amplifier, Quad, 4 Amplifier, 6MHz, 2V/µs, ± 4.5V to ± 18V, DIP, 14Pins
-
Stock Locations:
-
Availability:299 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 45.82
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The OP470 is a high-performance monolithic quad operational amplifier with exceptionally low voltage noise, 5nV/(root)Hz at 1kHz Max, offering comparable performance to PMI"s industry standard OP27.
- The OP470 features an input offset voltage below 0.4mV, excellent for a quad op amp, and an offset drift under 2µV/°C, guaranteed over the full military temperature range. Open-loop gain of the OP470 is over 1,000,000 into a 10k Ohm load insuring excellent gain accuracy and linearity, even in high-gain applications. Input bias is under 25nA which reduces errors due to signal source resistance. The OP470"s CMR of over 110dB and PSRR of less than 1.8µV/V significantly reduce errors due to ground noise and power supply fluctuations. Power consumption of the quad OP470 is half that of four OP27s, a significant advantage for power conscious applications. The OP470 is unity-gain stable with a gain-bandwidth product of 6MHz and a slew rate of 2V/µs.
- The OP470 offers excellent amplifier matching which is important for applications such as multiple gain blocks, low-noise instrumentation amplifiers, quad buffers, and low-noise active filters.
- The OP470 conforms to the industry standard 14-pin DIP pinout. It is pin compatible with the OP11, LM 148/149, HA4741, HA5104, and RM4156 quad op amps and can be used to upgrade systems using these devices.
- For higher speed applications the OP471, with a slew rate of 8V/µs, is recommended.
- ### Features and Benefits
- Very Low-Noise, 5 nV/√Hz @ 1 kHz Max
- Excellent Input Offset Voltage, 0.4 mV Max
- Low Offset Voltage Drift, 2 µV/°C Max
- Very High Gain, 1000 V/mV Min
- Outstanding CMR, 110 dB Min
- Slew Rate, 2 V/µs Typ
- Gain-Bandwidth Product, 6 MHz Typ
- Industry Standard Quad Pinouts
- Available in Die Form
OP470EY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | CDIP-14 |
| Supply Current | 9 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Common Mode Rejection Ratio | 110 dB |
| Input Capacitance | 2.00 pF |
| Bandwidth | 6 MHz |
| Slew Rate | 2.00 V/μs |
| Gain Bandwidth Product | 6 MHz |
| Input Impedance | 400 kΩ |
| Input Offset Voltage | 100 µV |
| Input Bias Current | 6 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 6 MHz |
| Minimum CMRR Range | 110 dB |
| Show | |
| Size-Length | 19.94 mm |
| Size-Width | 7.87 mm |
| Size-Height | 3.56 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
| REACH SVHC Compliance Edition | 2015/12/17 |
