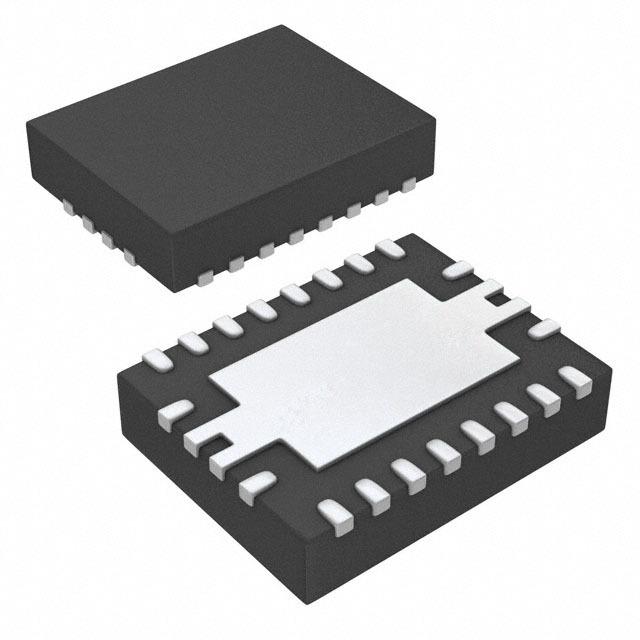

Image is for your reference only,please check specifications for details

BQ24103RHLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2839653
Category:
Battery Management IC
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management Standalone Synchronous Switch-mode Li-Ion Charger w/2A FET in QFN-20, 1- or 2-cell Switch Mode Charger Li-Ion/Li-Pol/NiCD/NiMH 150mA to 2000mA 4.2V/8.4V 20Pin VQFN EP T/R
Stock Locations:
Availability:
1,157 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24103RHLR is a highly integrated Li-ion and Li-polymer switch-mode Charge Management Device targeted at a wide range of portable applications. The bqSWITCHER™ series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge preconditioning, charge status and charge termination. The system-controlled version provides additional inputs for full charge management under system control. The bqSWITCHER™ charges the battery in three phases: conditioning, constant current and constant voltage. Charge is terminated based on user- selectable minimum current level. A programmable charge timer provides a safety backup for charge termination. The bqSWITCHER™ automatically restarts the charge cycle if the battery voltage falls below an internal threshold. The bqSWITCHER™ automatically enters sleep mode when VCC supply is removed.
High-accuracy voltage and current regulation
High-side battery current sensing
Battery temperature monitoring
Automatic sleep mode for low power consumption
Reverse leakage protection prevents battery drainage
Thermal shutdown and protection
Built-in battery detection
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24103RHLR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Supply Voltage (DC)	16.0V (max)
Input Voltage (DC)	16.0 V
Output Voltage	7 V
Number of Positions	20 Position
Power Dissipation	1810 mW
Switching Frequency	1.10 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1810 mW
Supply Voltage	4.3 V
Supply Voltage (Max)	16 V
Input Voltage	16 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
