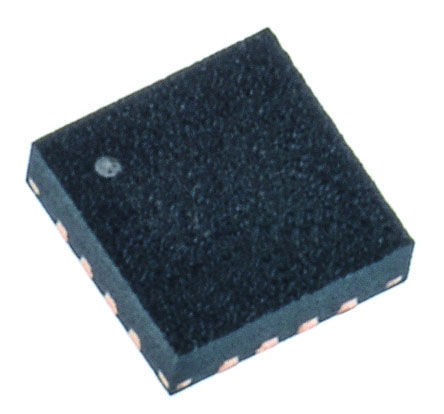

Image is for your reference only,please check specifications for details
- BQ24232RGTT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC21634057
-
Category:Battery Management IC
-
Package:VQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Battery Charge Management USB Friendly 0.5A Li+ Charger w/ Dynamic Power Management, 10.5V OVP Battery Charger Li-Ion 500mA 4.4V 16Pin VQFN EP T/R
-
Stock Locations:
-
Availability:66 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.84
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BQ24232RGTT is an USB-friendly lithium-ion battery charger and power-path management integrated Circuit targeted at space-limited portable applications. The device operates from either an USB port or ac adapter and support charge currents between 500mA. The high-input-voltage range with input overvoltage protection supports low-cost, unregulated adapters. The USB input current limit accuracy and start-up sequence allow the bq2423x to meet USB-IF inrush current specification. Additionally, the input dynamic power management VIN-DPM prevents the charger from crashing poorly designed or incorrectly configured USB sources. The IC features dynamic power-path management (DPPM) that powers the system while simultaneously and independently charging the battery. The DPPM circuit reduces the charge current when the input current limit causes the system output to fall to the DPPM threshold, thus supplying the system load at all times while monitoring the charge current separately.
- Fully compliant USB charger
- Integrated Dynamic Power Path Management (DPPM) function
- Programmable termination current
- Programmable pre-charge and fast-charge safety timers
- Reverse current, short-circuit and thermal protection
- NTC thermistor input
- Proprietary start-up
- sequence limits inrush current
- Status indication-charging/done, power good
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
BQ24232RGTT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | VQFN-16 |
| Input Voltage (DC) | 10.2 V |
| Output Voltage | 4.4 V |
| Output Current | 0.5 A |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Output Voltage (Max) | 4.4 V |
| Output Current (Max) | 1500 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.35V ~ 26V |
| Supply Voltage (Max) | 10.2 V |
| Input Voltage | 10.2 V |
| Show | |
| Size-Length | 3.15 mm |
| Size-Width | 3.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
