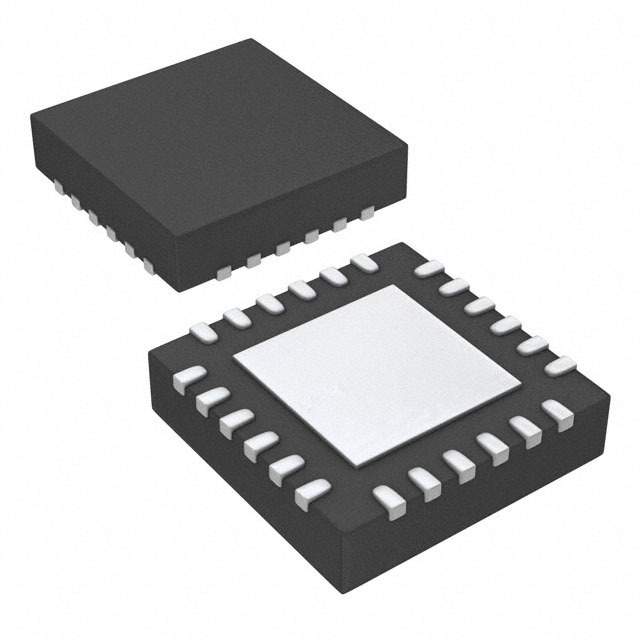

Image is for your reference only,please check specifications for details

BQ24296RGET - TI
Manufacturer:
TI
ManyChip's Part#:
MC5764759
Category:
Battery Management IC
Package:
VQFN-24
Datasheet:
Datasheet 3D Model
Description:
I2C Controlled 3A Single Cell USB NVDC-1 Charger with Adjustable Voltage USB OTG 24-VQFN -40℃ to 85℃
Stock Locations:
Availability:
279 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.46

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24296RGET is a single cell USB Charger with narrow VDC power path management and adjustable voltage USB. Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charge time and extends battery life during discharging phase. The I²C serial interface with charging and system settings makes the device a truly flexible solution. The device supports 3.9 to 6.2V USB input sources, including standard USB host port and USB charging port with 6.4V over-voltage protection. The device is compliant with USB 2.0 and USB 3.0 power specifications with input current and voltage regulation. To set the default input current limit, the bq24296 takes the result from the detection circuit in the system, such as USB PHY device and the bq24296 detects the input source through D+/D- detection.
Ideal diode operation in battery supplement mode
Autonomous battery charging with or without host management
Battery charge enable and preconditioning
Charge termination and recharge
±0.5% Charge voltage regulation
±7% Charge current regulation
Synchronous switching MOSFETs
Bootstrap diode
Internal loop compensation
Thermal regulation and thermal shutdown
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24296RGET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	VQFN-24
Input Voltage (DC)	6.20 V
Output Voltage	3.5V ~ 4.4V
Output Current	3500 mA
Number of Positions	24 Position
Switching Frequency	1.50 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6.2 V
Input Voltage	6.2 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
